Chapter 3

The disk¶

Wings of Fury came on one floppy disk, which starts the game on an Amiga 500 or 2000 (the manual, page 2), and almost everything the port knows about the game comes from it. By the end of this chapter you will know what is on the disk and how little of it the port had to decode, how the program is built from parts called hunks, and why the project's tools load those at one fixed set of addresses. You will also know how the compiler reaches the variables through the register A4, which explains the operand -$46ec(a4) of chapter 2, and how each compiled routine keeps its arguments in a frame on A5; what its 16-bit integers demand of the port; and why every table and text the port needs is read out of the program, never typed in again.

An image of the floppy¶

The repository keeps the disk as an ADF, an Amiga Disk File: a copy of an Amiga floppy, block by block, in one file. A double-density floppy is laid out in cylinders of two tracks, each track a row of blocks of one size, which add up to the 880 KB an Amiga owner knows, exactly the size of the image, original/wof.adf. Beside it lie the disk's files, extracted byte for byte, under original/disk/. Nothing in the project ever writes to either.

The disk uses AmigaDOS's original file system, which keeps the top directory in block 880, the middle of the disk. A directory spreads its entries over 72 chains by a hash of their names, a number worked out from a name's letters that picks its chain, so that a file is found by reading one chain instead of every entry. A listing walks the chains in turn, so a directory lists its files by chain, not by name: the order of the saved games in the load dialog, which chapter 1 met. The port and its tools read the extracted files; the image itself is read for that order alone, which the headless original hands the game as the machine would. The image confirms each file's chain; how a real machine walks the chains, and where it puts a newly saved file, is documented but unconfirmed, as chapter 1 said (chapter 20).

At start-up the disk's script, s/startup-sequence, runs a small command of the disk's own, enters the directory Wings_of_Fury and starts the program Wings. On the disk's top level, for no reason the disk tells, lies a second copy of the program, Wings2, byte for byte the same.

What is on the disk¶

The game's directory, Wings_of_Fury, holds 65 files, 664,981 bytes in all.

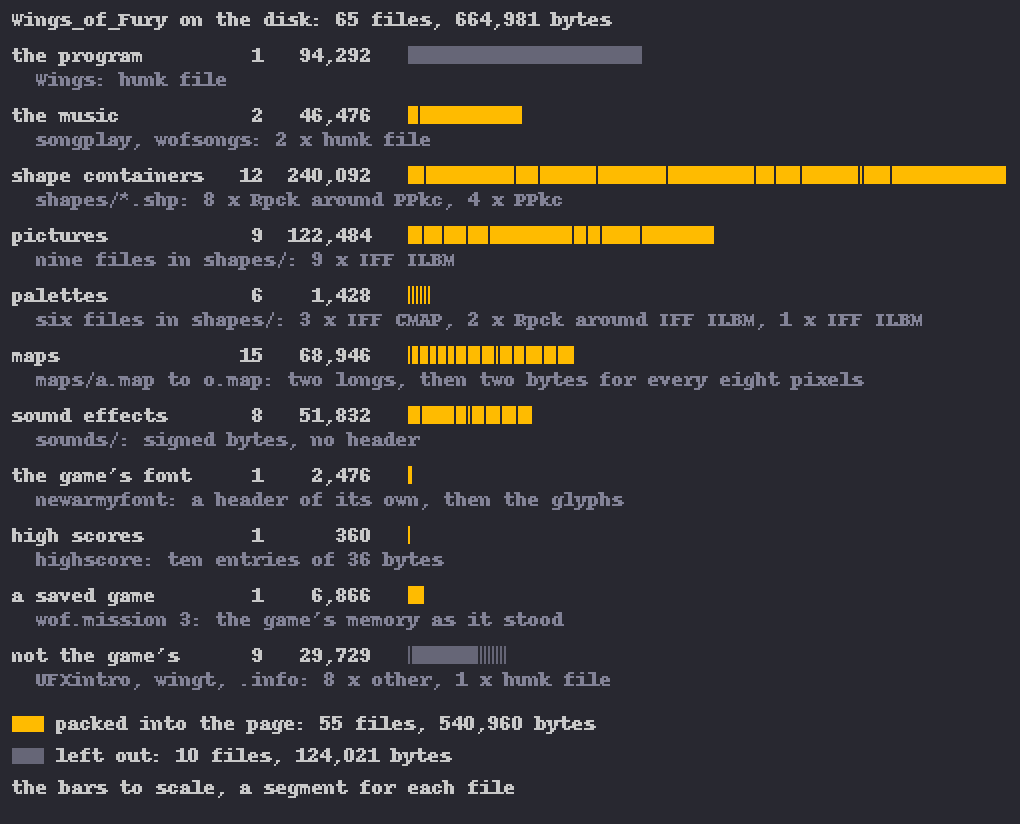

Eleven rows by kind of file, each with its count, its bytes, a bar to scale and its formats; the program and the files not the game's in grey. — The game's directory on the disk: each kind of file with its count and bytes, each file a segment of its row's bar, gold where it goes into the port's page.

The program, Wings, the subject of the rest of the chapter.
The music, in two files of its own: songplay, the music player, a small player that the game loads and then calls like one of its own routines (chapter 2); and wofsongs, the songs, the voices and their sound samples (chapter 18).
Twelve shape containers, the files ending in .shp, with 1,049 shapes between them (chapter 12).
Nine pictures: the title sequence's three, the rank selection's, the high-score screen's two, the dashboard's by day and by night, and Rank.iff, which the game never opens.
Six palettes, files of colours: three are bare lists of 32 colours, the other three pictures read only for their colours, and the game never opens two of those. The sky's palette, the sea's, the dashboard's picture and its shapes each come in a version for day and one for night (chapter 11).
Fifteen maps, maps/a.map to maps/o.map, one for each mission: after two numbers of four bytes, a row of records of two bytes, one for every eight pixels of the world from left to right, each saying what stands there and how high (chapter 13).
Eight sound effects in sounds/: nothing but signed bytes, bytes read as numbers from −128 to 127, which Paula plays as they are; sounds/boom is chapter 2's burst.
The game's font, newarmyfont: its height, its first and last character, a width for each character, then the glyphs. The dialogs' font, topaz 8, comes from the ROM.
The high scores, highscore: ten entries of 36 bytes, each a score, the rank reached and a name.
A saved game, wof.mission 3, saved on a real Amiga in the first rank's third mission, with 14,225 points.

A saved game is the game's memory as it stood, its pieces one after another without headers: the game's variables, then the map's records and the tables of the targets, so that its size, 4 to 11 KB, follows from the map alone. Four of its fields are addresses in the memory of the machine that saved it, such as 0x0005FB4A for the player's shape in this one; the port works them out from the data beside them. Chapter 17 takes the saved game apart.

One file the game asks for is missing: wofdemo, the attract demo. Left alone at the rank selection, the game tries to load it and, without it, starts a mission. The port does the same, unless a demo was recorded on the page, which then plays instead; the demo runs that chapter 1 counted play demos the tests recorded first (chapter 17). Nine files are not the game's at all: UFXintro, wingt and seven .info files.

The port packs 55 of the files into its page, all but the program and those nine: 540,960 bytes, each file in its original format. The program stays out: the port is its rewrite, its code the core, its data read as the last section tells. A file keeps its name, found whatever its case, as AmigaDOS finds it: the game asks for shapes/Torpedo.shp, the disk has torpedo.shp.

The little there was to decode¶

The game has a packed format of its own, Rpck, named after the four letters a packed file begins with, then its unpacked size in four bytes and a stream of control bytes, each read as a signed byte. A negative one, −n, says: copy the next n bytes. Any other, n, says: repeat the next byte n + 1 times. Ten files are packed, eight shape containers and two palettes, and the game's loader unpacks any file that begins with those letters.

A shape container is a file of many shapes, the format that begins with PPkc: the number of shapes, a name of four characters for each, where each shape's entry begins, then the entries. An entry is a header of 20 bytes, with the shape's width and height, its hotspot (the point that lands on the position the shape is drawn at) and, since a shape may store fewer planes than the screen has, the screen's bitplanes each stored plane lands in; the planes follow. The game asks for its shapes by name, through lists of names in its data, looking most up once, when it loads a container, and a few as it needs them. Names let one list be filled from different containers, the world's at full size or at an eighth, the dashboard's by day or by night, with the same code; a name missing from a container just leaves its slot empty.

The figure shows the start of the rank selection's shapes. A byte above 0x7F counts as negative, itself less 256, so the first control byte, 0xDA, 218, is −38: the 38 bytes after it are copied, the container's letters, its count and its names. Then 0x05 writes a zero six times, 0xD2 copies 46 bytes, and 0x17 writes 0xFF 24 times: the top row of the first shape's first stored plane, 192 pixels set.

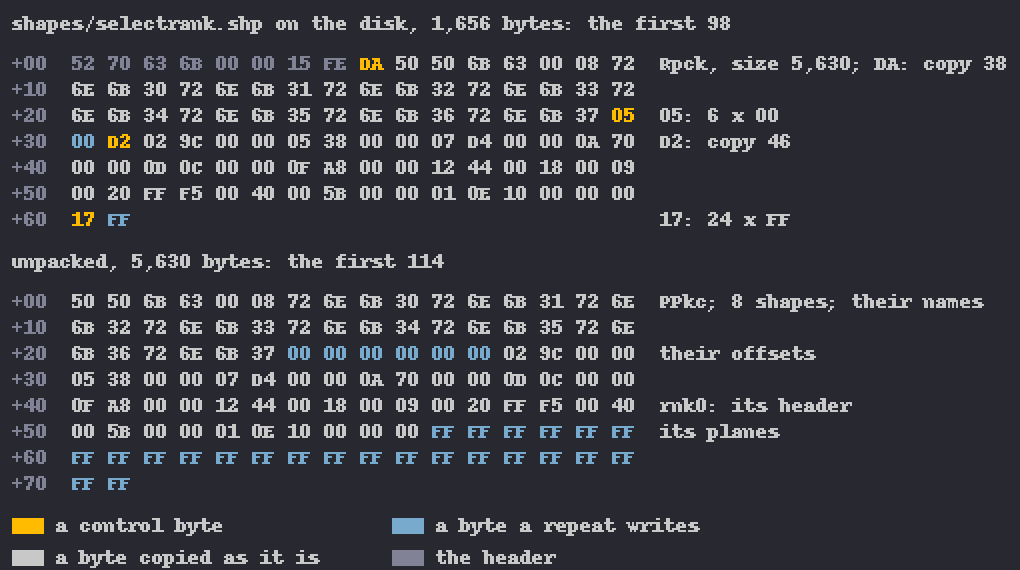

Two hexadecimal dumps: the packed file's first 98 bytes, four control bytes in gold, each explained; below, the 114 bytes they unpack to, the container's fields named. — The game's packed format at work: the first bytes of `shapes/selectrank.shp`, 1,656 bytes on the disk, and the first bytes of the shape container they unpack to, 5,630 bytes.

The pictures are IFF ILBM, the Amiga's standard format for pictures: a file of chunks, each a name of four letters, its length and its contents, which give a picture's size, its colours (CMAP) and its bitplanes, each row packed (BODY). Three palette files are a bare CMAP chunk. The game reads its pictures with a reader of its own, which also knows a private chunk, CMP2, for a second palette and the line where it begins, though no file on the disk carries one; the port carries that reader over rather than replacing it.

The sound effects and the maps need nothing decoded. For the core the port wrote no decoders: it ported the original's loaders, routine by routine. A standard decoder shows a file as its format means it; the game's loader shows it as the game did, cropped to its screen, with its quirks and the tables it builds, and only a ported loader can be held to the original's byte for byte. Decoders in Python under tools/ serve the tools, the tests and this book's figures. Under the oracle of chapter 5 the ported unpacker and the picture and palette readers were held to the original's, byte for byte, on every file they read, and the loader to a reference decoder on all 55.

The executable, a hunk file¶

An Amiga program is a hunk file, AmigaDOS's format for programs, made of hunks: parts of the program loaded into memory whole. A code hunk holds instructions, a data hunk variables with their starting values, and a BSS hunk memory that starts at zero, given in the file by its size alone. The file opens with a header that gives the number of hunks and their sizes; each hunk follows with its contents, a list of places to correct and an end mark, every part opening with a number of four bytes that says what it is.

Wings has one hunk of each kind. Its code hunk is 77,644 bytes: the instructions, and the story and most other texts, each after the routine that uses it. Its data hunk takes 20,464 bytes in memory, of which the file stores the first 15,456; the rest starts at zero. Its BSS hunk is 4 bytes.

An Amiga program cannot count on an address of its own: several programs share one memory, none has a space of its own, and free memory of either kind, chip memory or not, lies elsewhere at every start. So a program comes in parts, each put into free memory of the right kind, its addresses corrected afterwards.

The file does not say where its hunks go. Where the program holds an address, the file holds an offset from the start of a hunk and lists the place as a relocation: an entry naming a place in a hunk that holds an address, which the loader corrects by where the target hunk landed. The code hunk has 22 relocations, the data hunk 247.

AmigaDOS loads a program with LoadSeg, the routine of its library that reads a hunk file, puts each hunk wherever it finds free memory of the kind the file asks for, and applies the relocations. wofsongs asks for chip memory, where Paula can reach its sound samples. The game loads its music with LoadSeg, and the system loaded Wings the same way.

Wings carries no symbols, the names a program file may keep for its routines and variables: no name survives in it as a symbol, and every name in this book's listings was given by the project, as chapter 4 tells. The music player kept its symbols, twenty names in its code.

Left, the file's parts with their relocations; right, memory to scale: code at 0x010000, data at 0x023000, BSS at 0x028000, A4 at 0x02AFFE in gold and the span it reaches. — The program on the disk, hunk by hunk, and where the project's tools load each hunk, with A4 and the span its offsets reach.

One layout for every address¶

On a real Amiga, LoadSeg chooses the addresses anew at every start, so an address written into a note would mean nothing the next day. So we use one fixed load layout: the one set of addresses at which all the project's tools load the program, the code at 0x010000, the data at 0x023000 and the BSS at 0x028000, each hunk at the next 4 KB boundary after the one before (tools/hunk.py). The disassembler that writes the listing, the program written out as assembly language, loads it so, as do the oracle, the headless original and the build's extractor of tables. So an address names one place everywhere: 0x01C982 is the routine record_at in the listing, in the notes, under the oracle and in its port's comment. The running port itself holds no such addresses: where the original keeps a pointer, the port keeps an offset or an index. The port's memory is the browser's, where an address would differ from the test build's and the Amiga's; an offset or an index is the same everywhere, so the port's state can be compared with the original's, saved and replayed.

Manx Aztec C¶

The game's C was compiled with Manx Aztec C, an Amiga C compiler of its day. The program names no compiler; we read it as Aztec C from its start-up code, which clears the BSS, opens dos.library and calls main, and from its conventions: the frame on A5, the variables through A4, the 16-bit int. The first third of the code, up to 0x015D62, is assembly language written by hand throughout: the main loop, the routines that draw the scene, the interrupt routines, the objects' movement. After it the 223 routines compiled from C stand among 188 written by hand: some among the game's C, such as the sound effects engine, the dashboard, the keyboard's handler, rand_beam and the unpacker; the blitter's routines in one stretch; and the rest at the end, among the C library and the system's glue. One rule sorts all 616: every compiled routine opens with the compiler's frame instruction, link a5, and no hand-written one does. Chapter 4 draws the map; here the two kinds matter for what they share.

A4¶

The compiler reaches the program's variables through one register, the small-data base A4: the register holding an address inside the data, from which every variable is reached by an offset of 16 bits. The program's first instruction jumps to the C library's start-up code, which first calls a routine of two instructions that loads A4. The file holds the number 0x7FFE there, with a relocation into the data hunk, so A4 ends up 32,766 bytes into the data wherever the data was put: in the fixed layout, 0x02AFFE.

An offset of 16 bits reaches 32 KB either way, which from A4 takes in the whole data hunk from its first byte. An instruction names a variable in two bytes, where a full address takes four, and needs no relocation: when the data moves, A4 moves with it.

Now chapter 2's operand reads plainly. -$46ec(a4) is the variable 0x46EC bytes below A4: 0x02AFFE less 0x46EC is 0x026912, rand_seed_const. That chapter's rand_beam was written by hand, yet reaches its variables the same way: the hand-written assembly and the compiled C share one set of variables through A4. About one instruction in five has an operand relative to A4.

Many of those are calls into the far-call table: 185 jump instructions at the start of the data hunk, each holding the full address of a routine. A call relative to the program counter, the register holding the address of the instruction being executed, carries a distance of 16 bits and reaches only 32 KB either way, while the code hunk runs to 76 KB. A call through the table, such as jsr -$7e1e(a4) in the game's main routine, is one short instruction that reaches any routine from anywhere and needs no relocation of its own, the correcting done once, in the table's slots. With the calls relative to the program counter and the variables relative to A4, that is why the code hunk needs only 22 relocations.

The frame on A5¶

The compiler also fixes the calling convention, the rules by which a caller hands a routine its arguments and gets the result back. The caller pushes the arguments onto the stack, the last first, 2 bytes for an int and 4 for a long or a pointer, and calls, which pushes the return address, 4 bytes; the result comes back in the register D0. Each of the 223 C routines begins with link a5, which builds its stack frame, the routine's own stretch of the stack: it pushes the caller's A5, sets A5 to the stack pointer and moves the stack pointer down to make room for the routine's variables. Above A5 lie the caller's A5 and the return address, four bytes each, so the first argument is always at 8(a5); the routine's variables lie below A5. A second pointer is needed because the stack pointer moves whenever the routine pushes arguments for a call of its own, while A5 stays put and every argument and variable keeps one offset. The same convention lets the oracle of chapter 5 call an original routine as its callers do, pushing two bytes for an int, four for a long.

record_at shows both registers at work. Given a position in the world, its x, it returns the address of the map record under it, with the help of two variables: map_records, the address of the map's first record, and map_records_end, the bound it checks against.

Left, the stack: the argument at 8(a5), the return address, the caller's A5 where A5 points, the local where A7 points. Right, A4 at 0x02AFFE and the map's two variables below it. — What `record_at` reaches while it runs: its frame on the stack through A5, and two variables through A4.

The listing computes in order. It reads x at $8(a5) as a word, because an int is 16 bits, and makes a negative x 0. It widens x to 32 bits with ext.l, a sign extension, which copies the sign bit into the new upper half so that the number keeps its value, because divs.w divides a 32-bit number. It divides by 8, because one record covers eight pixels; doubles the result with asl.w, because a record is two bytes, and widens it again; adds map_records, at -$69d6(a4); and keeps the sum, the record's address, in its own variable at -$4(a5). If that lies at or past map_records_end, at -$69d2(a4), it takes the address two bytes before the bound instead. The result goes back in D0. Here the doubling in 16 bits cannot overflow, since an eighth of a 16-bit x, doubled, still fits; the port keeps the widths anyway.

; re/Wings.lst 0x01C982-0x01C9C8: record_at [C]
record_at:
01c982  4e55fffc             link.w     a5, #$fffc
01c986  4a6d0008             tst.w      $8(a5)
01c98a  6c04                 bge.b      $1c990
01c98c  426d0008             clr.w      $8(a5)
loc_01c990:
01c990  302d0008             move.w     $8(a5), d0
01c994  48c0                 ext.l      d0
01c996  81fc0008             divs.w     #$8, d0
01c99a  3b400008             move.w     d0, $8(a5)
01c99e  302d0008             move.w     $8(a5), d0
01c9a2  e340                 asl.w      #$1, d0
01c9a4  48c0                 ext.l      d0
01c9a6  d0ac962a             add.l      -$69d6(a4), d0                         ; map_records
01c9aa  2b40fffc             move.l     d0, -$4(a5)
01c9ae  206dfffc             movea.l    -$4(a5), a0
01c9b2  b1ec962e             cmpa.l     -$69d2(a4), a0                         ; map_records_end
01c9b6  650a                 bcs.b      $1c9c2
01c9b8  206c962e             movea.l    -$69d2(a4), a0                         ; map_records_end
01c9bc  5588                 subq.l     #$2, a0
01c9be  2b48fffc             move.l     a0, -$4(a5)
loc_01c9c2:
01c9c2  202dfffc             move.l     -$4(a5), d0
01c9c6  4e5d                 unlk       a5
01c9c8  4e75                 rts

/* src/player.c, lines 68-81 */
/* orig 0x01C982 - the map record under a world x: x / 8 words into the list, the last
 * record for anything at or beyond the end, record 0 for x below zero. */
uint32_t wof_record_at(int16_t x)
{
    uint32_t at;

    if (x < 0)
        x = 0;
    at = (uint32_t)(uint16_t)(int16_t)(((int32_t)x / 8) * 2);   /* asl.w, then ext.l */
    at = (uint32_t)(int32_t)(int16_t)(uint16_t)at;
    if (at >= wof_m.map_records_end[0].off)
        at = wof_m.map_records_end[0].off - 2u;
    return at;
}

The port names the original's address in its first comment and keeps each width the listing shows, with casts. It returns an offset into the map's records where the original returns an address. The oracle holds the two to each other on five maps, at every x where a record begins, near both ends and at 500 random places.

The 16-bit int¶

In Manx Aztec C, as the game was built, an int, C's ordinary type for whole numbers, is 16 bits wide, and a long and a pointer 32; the compilers that build the port make an int 32 bits. An int holds the numbers from −32,768 to 32,767, and one past the largest is the smallest.

The game's arithmetic lives in that width. An enemy fighter sets the length of a turn from its distance from the player in pixels, times 100, divided by its speed. The 68000's muls.w multiplies two 16-bit numbers into 32 bits; the compiled code keeps only the low 16 bits of the product, sign-extends them with ext.l, and only then divides with divs.w. From a distance of 328 on, the product would not fit, 32,800 would become −32,736, and a port that kept all 32 bits would time the turn differently; whether a turn is ever timed at such a distance we did not measure. The port does what the original does, bit for bit.

Among the rules the specification sets for every routine (SPEC.md, section 7.1):

No value of the game is a plain C int in the port; every width is named: int16_t, uint16_t, int32_t and their kin.
Every change of width the listing shows happens in the port too: a sign extension, a product cut to 16 bits or kept at 32, a division that rounds toward zero and keeps a 16-bit quotient.
Whether a comparison is signed follows the branch instruction that reads it: the 68000 has separate branches for signed and unsigned comparisons.
Wrap-around is behaviour. A value that runs past its largest number wraps in the original, and the port wraps it too, with an explicit cast, because in today's C a signed overflow is undefined, and a compiler may assume it never happens.
Floating point never goes through C's float or double, which round differently. The game's goes through the C library to the ROM's fast floating point, which the port redoes in integer code (chapter 14).

A last rule concerns the routines written by hand, which pass values in registers and keep none of the compiler's rules: one may leave a value in a register's upper half for a later one, as a target's refill leaves a soldier's direction there, which the target's fire takes as a smoke's fraction. The port hands it on; chapter 9 tells how that was learnt, and chapter 22 returns to the rules as a whole.

Read from the executable, never retyped¶

The port needs the game's numbers and words, and we keep to one rule: hand-written sources hold code only, and every table, text and tuning value comes out of the program when the port is built, wherever the program keeps it. A tuning value is one the game's makers chose and could have set otherwise, a pitch, a speed, a volume, a count. A constant that follows from the game's formats is code like the rest of the routine: the 8 that record_at divides by comes from one map record for every eight pixels and could be nothing else, and the oracle holds it to the original.

The manifest re/tables.toml lists what is read, each entry with a name, a kind (names, strings, runs of numbers or bytes), where to read it and, where needed, how much; the music player's entries use addresses of its own layout. At every build, tools/extract_tables.py reads those bytes and writes them out as C, which is never committed. On the way it converts the byte order: the 68000 is big-endian, storing the most significant byte of a number first, as every file the project reads does, while the machines the port runs on are little-endian, storing the least significant byte first.

The manifest has 122 entries: 113 from Wings, 7 from the music player and 2 from the ROM, the system font and the key table. They hold the lists of shape names, the file names, the palettes of the front end, the screens before and between missions, the story, the dialogs' words, the mission's tables, the sound effects' periods and the music player's notes. One entry, data_image, is the stored part of the data hunk whole, 15,456 bytes, so that every variable the port keeps there starts with the original's own value. The story and most texts come from the code hunk, the file names from the data.

Some values are in no table at all. Chapter 2's burst plays at period 500, the operand of an instruction in the routine that sets up the sound effects' slots, here slot 4:

; re/Wings.lst 0x011FFE-0x01201C: sound_slots_init [asm], a part of 0x011F76-0x012065
011ffe  296cbe40c3cc         move.l     -$41c0(a4), -$3c34(a4)                 ; sound_boom_ptr | g_0273ca
012004  296ca578c3d0         move.l     -$5a88(a4), -$3c30(a4)                 ; g_025576 | g_0273ce
01200a  397c01f4c3d4         move.w     #$1f4, -$3c2c(a4)                      ; g_0273d2
012010  397c0040c3d6         move.w     #$40, -$3c2a(a4)                       ; g_0273d4
012016  397c0001c3d8         move.w     #$1, -$3c28(a4)                        ; g_0273d6
01201c  426cc3ca             clr.w      -$3c36(a4)                             ; g_0273c8

The first two lines hand the slot the burst's sound sample and its length. The third writes $1f4, which is 500, as its period; the next two a starting volume of 64 ($40), which every burst replaces by a volume from its distance, and a count of one: the burst plays once. The manifest's entry slot_periods reads that word at 0x01200C, and the same word in the setups of slots 0 to 6, 0x22 bytes apart; slot 7 has no fixed period, because it plays four different sounds.

The rule buys a port that cannot drift from the data. A number typed in again could be typed wrong, and nothing would say so; a number read from the program is the original's by construction, and an address outside the program stops the build. It also keeps the game out of the port's sources: src/, web/ and tools/ hold no game data. The port's code is free software, while the game belongs to its authors and publisher and is kept for preservation (README.md, "Licence"); the tables made from it are generated at every build and never committed.

For the developer

The fixed layout: code 0x010000 to 0x022F4C; data 0x023000 to 0x027FF0, its stored part to 0x026C60, the far-call table 0x023000 to 0x023456; BSS 0x028000; A4 0x02AFFE. tools/hunk.py FILE prints a hunk file's hunks with the counts of their relocations and symbols. The 55 files go into the page as one packed file (tools/build.py, pack_fs()): WOFS, a version, the count and the directory's offset, then 40 bytes for each file, its name in 32, its offset and its length, big-endian.

What comes next¶

Chapter 4 opens the listing: how a disassembler turned the machine code back into assembly language, how the routines got their names, how a skeleton of a routine's branches makes a long one readable, and how compiled C looks beside assembly written by hand.
