Chapter 13

The world¶

Chapter 3 gave the map files a sentence; this chapter opens them. By its end you will know what a world is to the game, a strip of small records and nothing else; what each of a record's sixteen bits is for; how a position in the world becomes a position on the screen; why the world never scrolls but is painted anew in every pass; what the game's logic reads from the map; and what the loader builds from it for each mission. Each mechanism ends with what the port made of it and the instrument that holds it.

A world in one file¶

Each mission's world is one file, maps/a.map to maps/o.map: two numbers of four bytes, then map records to the end of the file. A map record is a word of two bytes that stands for eight pixels of the world, from west to east: whether a shape stands there, which, and what lies under it. The map is the strip of them, and nothing else is in the file: no list of targets or ships, no picture of an island; a ship too is a run of records. Whatever else a mission needs, the loader builds from the strip.

map_load picks the file by the rank and the mission number (which map a mission gets is chapter 17's matter) and reads the two numbers. The first is the file's own length in bytes, and the loader takes it as the length of the record list too. The second is a byte offset into the records that falls on the carrier's deck. Four times it is the world x of the record it names, since a record is two bytes and covers eight pixels, and the player's aircraft starts eight pixels west of that, one record's width.

The loader reads eight bytes more than the file holds, so the last four records of every map never come from it. They are zero, because the game's own code asks the system for cleared memory on every allocation, as chapter 4 told. Why the eight bytes are asked for is not known, and nothing depends on the answer; what the game does rely on is that the memory it is given starts at zero, and a zero record draws nothing and gives no ground. The port clears its record list, a fixed table of the core's state, before reading the file into it, and its arena hands out zeroed memory too, the rule chapter 22 states. One test parses every map of the disk and finds nothing left over; another finds the map the first mission loads in the headless original equal to the file, word for word.

The fifteen maps differ in length and in what they carry; a, b and c are the first rank's three missions. The records include the four zero ones, a map is eight pixels wide for each, and a record with the draw flag, the next section's, may draw a shape.

Map	Records	Width, pixels	The player's start, world x	Records with the draw flag	Islands	Enemy ships	Airfields
a	955	7,640	7,032	89	1	none	none
b	1,751	14,008	6,112	172	2	none	none
c	1,951	15,608	5,880	238	3	none	none
d	1,795	14,360	7,456	213	2	none	1
e	2,135	17,080	10,760	259	3	none	1
f	1,744	13,952	8,416	157	2	cruise ship	none
g	2,359	18,872	10,488	226	3	cruise ship	none
h	2,775	22,200	12,920	281	3	destroyer	1
i	2,869	22,952	10,176	263	3	destroyer, cruise ship	1
j	997	7,976	3,960	19	0	destroyer, battleship	none
k	2,650	21,200	14,408	215	3	battleship	1
l	2,523	20,184	10,184	222	3	destroyer, battleship	2
m	3,569	28,552	13,760	282	4	battleship, Japanese carrier	2
n	2,932	23,456	10,904	183	3	destroyer, battleship	1
o	3,468	27,744	9,696	251	3	destroyer, battleship, Japanese carrier	1

Every map carries the player's carrier; map a, the shortest, is about twenty-four screens wide.

The record, bit by bit¶

The project's map decoder, tools/map_decode.py, a reader of the map files written apart from the port, takes a record apart with a mask and a shift for each of its four fields:

# tools/map_decode.py, lines 32-40
def fields(word):
    """The fields of one map record."""
    return {
        'draw': bool(word & 0x8000),          # bit 15: this record draws its shape
        'slot': (word >> 2) & 0x1FF,          # bits 2-10: the slot in MasterList or AthList
        'height': (word >> 11) & 7,           # bits 11-13: height steps down from the split row
        'low': word & 3,                      # bits 0-1: 1 rides on a ship, 2 stands on the world
        'bit14': bool(word & 0x4000),
    }

Bit 15 is the draw flag: only a record that carries it puts its shape on the screen. Bit 14 is never set. Bits 13 to 11 are the record's height field, 0 to 7, which despite its name moves the shape down the screen from the horizon's row, four rows a step. Bits 10 to 2 are the slot of chapter 12, in MasterList at full scale or AthList at the eighth scale, the two tables that turn a slot into a shape. Bits 1 and 0 say what lies under the record: 2 land, 1 a ship's deck, 0 open sea, where nothing stands.

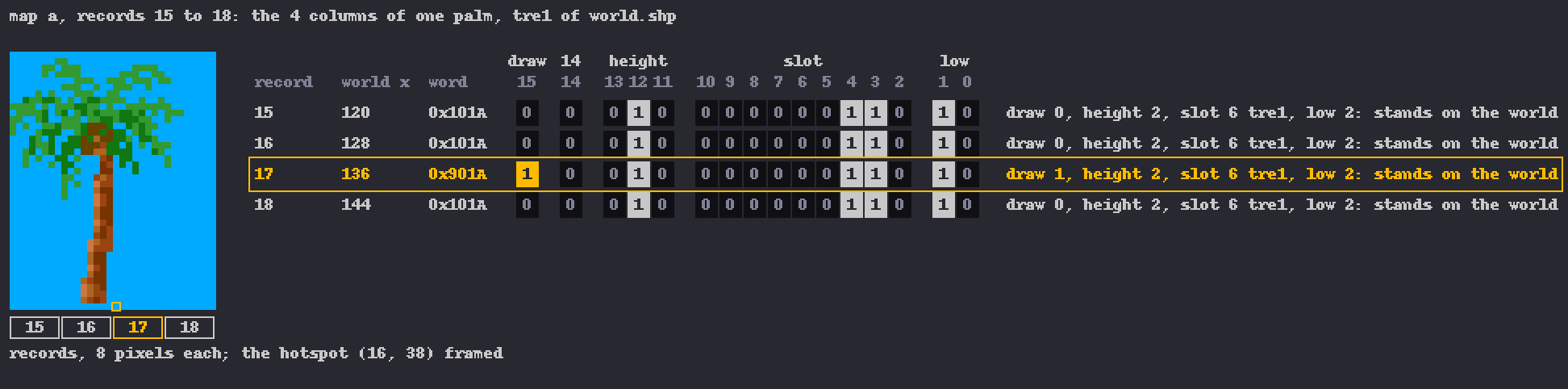

A palm over its four columns, numbered 15 to 18, and the four records' bits, the third with bit 15 set. — Records 15 to 18 of map a, the four columns of one palm: each carries the palm's slot and height field, and the third alone the draw flag.

A shape wider than eight pixels covers several records; all carry its slot and one carries the flag, most often the third, so the shape is drawn once, its hotspot on that record's x. The other columns are not wasted: the ground-height routine of a later section reads the slot and ignores the flag, so a palm four records wide stands in the way under all four.

The figures

Where the draw flag sits	Drawn records on land
The third column of its shape: two of its slot to the left	1,756
The fourth	664
The second	110
The first, or the only one	317
All	2,847

Of the 34,473 records, 3,070 carry the flag: those on land, 215 on ships and 8 over open sea. Not every one has a shape to draw: 45 name a marker slot, and 413 a bump of land that has a shape only at the eighth scale.

Only the palms and that bump, slots 6 to 9, have a height field other than 0, so an island's palms stand on different rows. The waves and the island's ground, drawn after them over the rows from the horizon down, hide more of a lower palm's trunk, and the palms rise from the shore to different heights. At the eighth scale the field is unused and every record stands on row 151.

A null entry of chapter 12's tables draws nothing. The tables hold 278 entries and the game fills 273; the five past them, 273 to 277, stay null, and the maps use them as markers that draw nothing. A pair of 0x111 and 0x112 stands at the two ends of every ship, a pair of 0x114 and 0x115 marks an airfield for the loader, and 0x113 marks where an island's flag stands; the flag is drawn beside that record as one of its extras, the shapes a record adds beside its own.

The low bits let a ship sink row by row while the record list stays as it is; a ship's run of records never moves along the strip, it sinks in place. A drawn record whose low bits are 1 is lowered by the ship whose span of the record list holds it, by the rows the ship has sunk and the swell. Of all the records, 2,677 carry these low bits, all within ships' spans, most without the flag. The low bits also tell the tick what lies under an object when a weapon lands or the aircraft comes down: open sea, land or a deck (chapters 14 and 15).

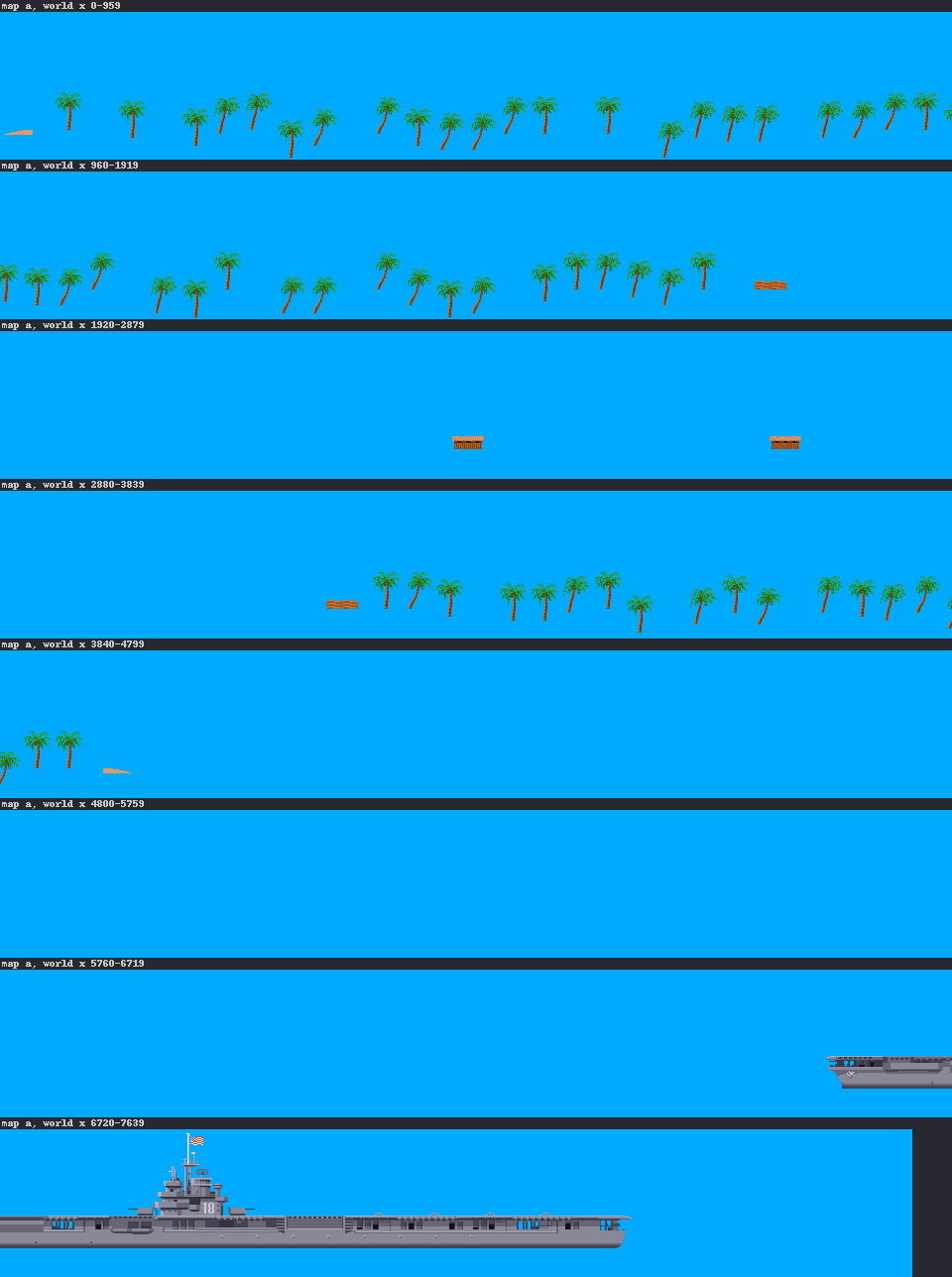

Map a in eight bands: palms, barracks and dug-outs on the left, then sea, the carrier from the seventh band into the eighth. — Map a as the strip of its drawn records, in bands of 960 pixels, three screens' width, the last one shorter: the island on the left, the carrier on the right; the island's ground between its beaches is not a record.

The figure shows map a, the first mission's world, whose shapes all come from world.shp; the later maps' ships come from shape containers of their own. The map viewer of this book shows every map with its records drawn in place, and the decoder's reading of the fields is held by its prediction of every draw, told below.

From the world to the screen¶

Positions in a mission are world coordinates: x in pixels from the map's west end, eight to a record, and y in pixels upward from the water line, the sea's surface, where y is zero. The screen counts its rows downward, so a conversion stands between the two.

Once in every pass, before anything is drawn, frame_update works out where the screen lies in the world, from a copy of the player's position taken for the drawing, so that the whole pass draws from one position. At full scale:

the screen's left edge, view_x, lies 160 pixels west of the player, so the aircraft is always at screen x 160, the middle of the playfield's 320;
a shape's screen x is its world x less view_x;
its screen y is view_y plus 11, less its world y, so the water line lies 11 rows below view_y;
view_y is the horizon's row: row 151 while the aircraft is no higher than 131, and one row further down for each pixel it climbs above that.

Chapter 11's split line is this row clamped to 162, the playfield's last, so the three are one row until the aircraft climbs above 142. Above a height of 131 the horizon sinks as the aircraft climbs, so the aircraft keeps its row on the screen; lower, it rises and falls. At the eighth scale view_y is 1,208, both screen coordinates are divided by eight and view_x lies 1,280 pixels west, which puts the aircraft at 160 again; the horizon's row is then 151 at any height.

draw_world_shape, chapter 12's helper for every shape the objects draw, makes this conversion and draws a shape only while its screen x lies from −128 to 448: that is the routine's rule.

The playfield over a strip of records, the aircraft at screen x 160, the window from −128 to 448 marked under the strip. — Where the world meets the screen at full scale: the records a pass draws reach past both edges of the playfield, from the one 288 pixels west of the aircraft.

The map's own loop in draw_world does the same arithmetic in its own words. It starts with the record 288 pixels west of the aircraft, at screen x −128 or a few pixels further left, steps one record at a time, eight screen pixels apart (one at the eighth scale, from eight times as far west), and stops with the first record past screen x 448: nearly the helper's window.

Both loops of chapter 8 compare view_x and view_y after every pass, and the decoder, below, holds the draws they place; the helpers that find the record under a world x are held under the oracle at every world x where a record starts, on five maps.

A picture painted anew¶

The world appears to scroll as the aircraft flies, but nothing scrolls: no pass copies the last picture and shifts it, and the Amiga's hardware scrolling is not used either. Every pass paints the playfield anew from the map: first the sky in colour 1, from the top down to the horizon's row, then the strip, record by record, then the layers.

On the left, the record is read and shifted right by two; its draw flag, now bit 13, is tested and cleared (bclr.b #$d,d1), and a record without it gets only its extras. Shifted back and masked (and.w #$7fc,d1), the record leaves the slot times four, a pointer's size: the offset of its entry in the table, with no multiplication; a null entry is passed by. The row is 151 at the eighth scale (move.w #$97,d1), else the horizon's row in D5 plus four rows a step of the height field. After the extras the loop steps on and ends with the first record past screen x 448 (cmp.w #$1d0,d4, the screen x plus eight against 464). On the right, the decoder's draw_list is the same loop in Python.

; re/Wings.lst 0x013842-0x0138B8: draw_world [asm], a part of 0x013772-0x01391D
loc_013842:
013842  301d                 move.w     (a5)+, d0
013844  222c962e             move.l     -$69d2(a4), d1                         ; map_records_end
013848  b28d                 cmp.l      a5, d1
01384a  6500006e             bcs.w      $138ba
01384e  3200                 move.w     d0, d1
013850  3400                 move.w     d0, d2
013852  e449                 lsr.w      #$2, d1
013854  c47c0003             and.w      #$3, d2
013858  3601                 move.w     d1, d3
01385a  0881000d             bclr.b     #$d, d1
01385e  6700004c             beq.w      $138ac
013862  e549                 lsl.w      #$2, d1
013864  c27c07fc             and.w      #$7fc, d1
013868  2047                 movea.l    d7, a0
01386a  20701000             movea.l    (a0, d1.w), a0
01386e  2008                 move.l     a0, d0
013870  6700003a             beq.w      $138ac
013874  3004                 move.w     d4, d0
013876  4a6c9f36             tst.w      -$60ca(a4)                             ; view_shift
01387a  6700000a             beq.w      $13886
01387e  323c0097             move.w     #$97, d1
013882  6000000c             bra.w      $13890
loc_013886:
013886  3203                 move.w     d3, d1
013888  ee49                 lsr.w      #$7, d1
01388a  c27c001c             and.w      #$1c, d1
01388e  d245                 add.w      d5, d1
loc_013890:
013890  2c6cb93a             movea.l    -$46c6(a4), a6                         ; custom_base
013894  93c9                 suba.l     a1, a1
013896  5342                 subq.w     #$1, d2
013898  6604                 bne.b      $1389e
01389a  4eba1610             jsr        $14eac(pc)                             ; ride_on_ship
loc_01389e:
01389e  5140                 subq.w     #$8, d0
0138a0  90680004             sub.w      $4(a0), d0
0138a4  92680006             sub.w      $6(a0), d1
0138a8  4eac832c             jsr        -$7cd4(a4)                             ; -> shape_draw
loc_0138ac:
0138ac  4eba026e             jsr        $13b1c(pc)                             ; record_extras
0138b0  d86c9f38             add.w      -$60c8(a4), d4                         ; view_step
0138b4  b87c01d0             cmp.w      #$1d0, d4
0138b8  6d88                 blt.b      $13842

# tools/map_decode.py, lines 80-108
def draw_list(chart, player_x, view_step=8, view_shift=0, split_row=0, slot_used=None,
              ride=None):
    """The map draws of one pass, in the order `draw_world` makes them.

    player_x is the drawing's copy of the player's world x (`0x026E5C`).  slot_used(slot)
    says whether that slot of the pointer table holds a shape; a null slot is skipped.
    ride(world_x) gives the rows a record of `low` 1 is moved down by, which is the ship it
    stands on (`0x014EAC` through `0x014A4E`); without it such a record keeps its own row.
    Returns [(index, slot, screen_x, screen_y, record)], where screen_x and screen_y are
    what `draw_world` hands `shape_draw` before the shape's hotspot is taken off."""
    x = player_x & 0xFFF8 if view_step == 1 else player_x
    margin = MARGIN_FULL if view_step == 8 else MARGIN_EIGHTH
    offset = (((x - margin) & 0xFFFF) ^ 0x8000) - 0x8000        # a signed word
    offset = (offset >> 2) & ~1                                 # asr.w #2, then bclr #0
    index = offset // 2
    screen_x = (8 - (x & 7) - 128)
    out = []
    while screen_x < SCREEN_END:
        if 0 <= index < len(chart.words) - 1:        # the last record is read but never drawn
            record = chart.record(index)
            if record['draw'] and (slot_used is None or slot_used(record['slot'])):
                y = 0x97 if view_shift else split_row + HEIGHT_STEP * record['height']
                if record['low'] == 1 and ride is not None:
                    world_x = (screen_x - 0xA0) * (8 if view_shift else 1) + player_x
                    y += ride(world_x & 0xFFFF)
                out.append((index, record['slot'], screen_x - 8, y, record))
        index += 1
        screen_x += view_step
    return out

A record's extras belong to its place: a burnt barracks smokes for a while, at both scales; at full scale the carrier's flag flies beside its tower's record, its lift, which raises the aircraft from the hold (chapter 14), beside each of its two lift records, and an island's flag beside the record of slot 0x113. Walking the places on the screen, the loop needs no search for them.

After the strip come draw_world's layers, always in this order: the aircraft waiting on the carrier's deck, one for each life left but the one flying; the one on the lift; the player's; the enemy aircraft and their wrecks; the guns of the dug-outs, the pillboxes and the enemy ships; the aircraft parked on the airfields and on the ships' decks; the waves; and last the islands. Drawn last, the waves and the islands' ground cover whatever lies below the horizon's row, the palms' trunks among it. Then frame_update draws the rest over the world: the smoke, the soldiers, the splashes, the objects in flight, the weapon marker in the hold, the balloons and, when a game ends, its sign (chapters 15 and 16).

The sea at full scale is one frame of the wave animation, drawn five times, 96 pixels apart; the frame steps through twelve as the passes go by, and its place follows the player's x, so that the waves move with the world. At the eighth scale it is a band of colour 10. An island is its two beaches, slots 1 and 2, at the world x of its drawn beach records, with colour 17, the island's ground, filled between them from the horizon's row down. An airfield in use shows its parked aircraft and the one rolling to take off (chapter 16).

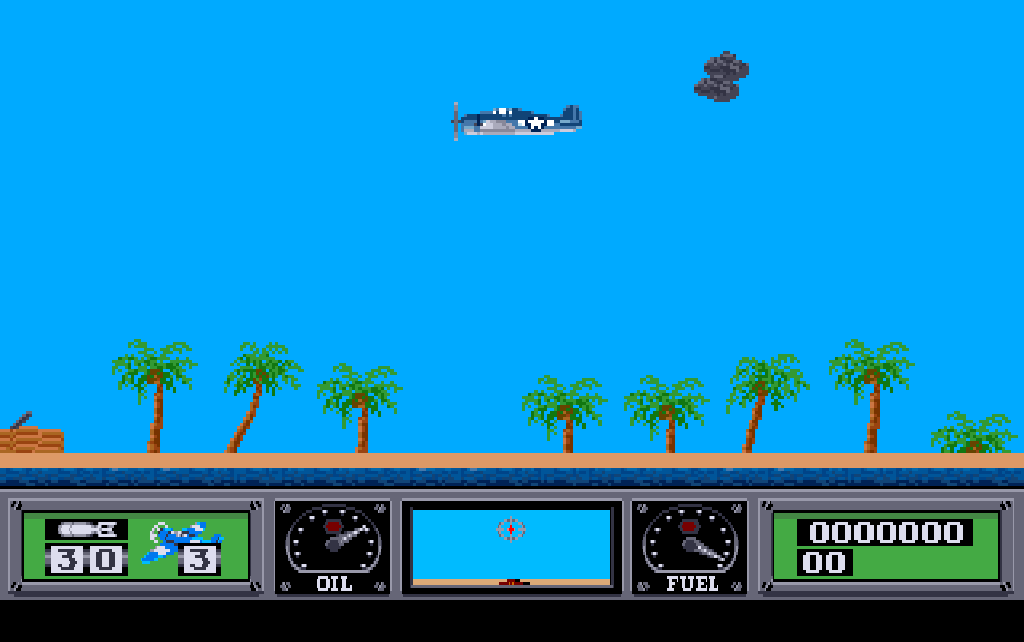

The picture below comes from the island run, made for this book: a take-off and a turn west, flown by the stick's letters as chapter 8's scripts are.

The play screen: the aircraft in a blue sky, palms over the island's ground, the waves, the dashboard. — The first mission at VBlank 3500 of the island run, about 57 seconds into the mission: the aircraft at world x 3,381 of map a, 109 pixels up, at full scale. Look at the palms rising from the shore to different heights, the island's ground and the waves.

Painting anew fits the game, though no note says why it was chosen: the horizon's row moves with the aircraft's height and the scale changes at a height, so a copied picture would have to be remade then anyway; and the playfield is double-buffered (chapter 11), so the screen a pass draws into last showed the picture of two passes before, which painting from the map makes irrelevant. The port, with no blitter, paints the same way per pixel into its indexed framebuffer, routine by routine and in the same order.

The decoder holds no data of the game; it reads the map files when it runs. Over a flight of 684 passes in the headless original, from the deck to the eighth scale, it predicts every draw the original made from the map, slot and position, in order, pass for pass: over five thousand draws. A control of chapter 8's kind changes the map instead of the port: a drawn record of the carrier in map a gets another of the carrier's slots and another height field, laid over the disk:

# tests/test_map.py, lines 180-208
def test_a_changed_map_changes_exactly_the_draws_the_decoder_says(tmp_path):
    """The control: one record of the map is given another slot and another height, laid over
    the disk through the run description's `files`.  Everything the decoder predicts for the
    first passes changes with it, and nothing else in the state does."""
    chart = map_decode.load('a')
    index = next(i for i, word in enumerate(chart.words)
                 if word & 0x8000 and (word >> 2) & 0x1FF == 0x27)
    changed = list(chart.words)
    changed[index] = (changed[index] & ~0x7FC & ~0x3800) | (0x24 << 2) | (3 << 11)
    data = struct.pack('>LL', chart.length, chart.start) + struct.pack(
        '>%dH' % chart.on_disk, *changed[:chart.on_disk])
    plain = flight()
    laid = flight(files={'maps/a.map': data.hex()})
    other = map_decode.Map('a', data)

    tables, views = tables_of(laid), passes_of(laid)
    for view in views:
        assert observed(laid, view, tables) == predicted(other, view, tables), view['pass']

    # What differs between the two runs is the map itself and what the changed record feeds:
    # the copy in memory, and the ground height the tick takes from it.
    before, after = passes_of(plain), views
    assert [view['player_x'] for view in before] == [view['player_x'] for view in after]
    differing = [i for i, (a, b) in enumerate(zip(before, after))
                 if observed(plain, a, tables_of(plain)) != observed(laid, b, tables)]
    assert differing, 'the changed record never reached the screen'
    for i in differing:
        assert (predicted(chart, before[i], tables_of(plain))
                != predicted(other, after[i], tables)), i

The prediction holds for every pass; every pass whose draws differ is one it predicted, and the aircraft's x is the same pass for pass, since a carrier's slot takes its ground from the deck whatever its height field. In both loops of chapter 8 the port's map draws are compared after every pass of the mission scripts with the decoder's prediction from the records as the original then holds them.

The ground under the aircraft¶

In a flight without weapons the tick reads the map for one thing, the ground height: how high what stands at a record reaches, asked for under an object. A run of the headless original with a hook on every read of the map, over a take-off and 568 ticks of flight without a weapon fired, found inside the ticks only the ground-height routine, against more than a hundred thousand reads by the drawing. When a weapon lands, a splash is made or the aircraft comes down, the tick also reads a record's slot and low bits, and a hit rewrites records (chapters 14 and 15). One value more comes from the drawing of the world, a distance the ground guns' sound takes, one of chapter 7's couplings. The picture is never read, so the logic is the same whether anything is drawn or not, as chapter 2 told.

The figures

Who read the map in that run	Reads
The mission's setup, its walks	2,865
The tick: the ground height	547
The pass: the strip	71,635
The pass: the map in the dashboard's 3-D window	48,639
The pass: two small routines	76

ground_height answers in three ways. For six classes of slot, the class's height from a table of six words in the executable, less the height field: one pixel a step, while the picture moves four rows a step. For a ship's slot, the ship's deck height less how far it has sunk and less the swell, and over the carrier's whole deck less the lift's value as well (chapter 14), so a deck's ground follows its ship. For every other slot, zero: the beaches, an island's plain ground and the sea all lie at height zero, and the tick's ground is the height of what stands there.

Class	Slots	Height
A palm	6	36
A palm	7	35
A palm, and one more shape of the islands	8, `0x0B`	35
A dug-out	3	9
A barracks	4	13
A pillbox, in any state	`0x0F` to `0x1E`	12

On the left, the three answers: zero (moveq #$0,d0); a ship's deck, its height at 0x0E less how far it has sunk at 0x14 less the swell, the carrier also less the lift; a class's height, the class number doubled to index the table and the height field, bits 11 to 13, taken off. On the right, the port's switch does the same.

; re/Wings.lst 0x01584A-0x015896: ground_height [asm], a part of 0x015714-0x015897
loc_01584a:
01584a  7000                 moveq      #$0, d0
01584c  60000044             bra.w      $15892
loc_015850:
015850  7000                 moveq      #$0, d0
015852  302a000e             move.w     $e(a2), d0
015856  906a0014             sub.w      $14(a2), d0
01585a  906ca3b0             sub.w      -$5c50(a4), d0                         ; g_0253ae
01585e  906ca398             sub.w      -$5c68(a4), d0                         ; g_025396
015862  6000002e             bra.w      $15892
loc_015866:
015866  7000                 moveq      #$0, d0
015868  302a000e             move.w     $e(a2), d0
01586c  906a0014             sub.w      $14(a2), d0
015870  906ca3b0             sub.w      -$5c50(a4), d0                         ; g_0253ae
015874  6000001c             bra.w      $15892
loc_015878:
015878  7000                 moveq      #$0, d0
01587a  43eca7c4             lea.l      -$583c(a4), a1                         ; ground_class_heights
01587e  d442                 add.w      d2, d2
015880  34312000             move.w     (a1, d2.w), d2
015884  3010                 move.w     (a0), d0
015886  720b                 moveq      #$b, d1
015888  e268                 lsr.w      d1, d0
01588a  c07c0007             and.w      #$7, d0
01588e  9440                 sub.w      d0, d2
015890  c540                 exg.l      d2, d0
loc_015892:
015892  4cdf0404             movem.l    (a7)+, d2/a2
015896  4e75                 rts

/* src/tick.c, lines 57-93, a part of wof_ground_height (lines 46-93) */
    switch (cls) {
    case 0x06:                                 row = 0; break;
    case 0x07:                                 row = 1; break;
    case 0x08: case 0x0B:                      row = 2; break;
    case 0x03:                                 row = 3; break;
    case 0x04:                                 row = 4; break;
    default:
        if (cls >= 0x0F && cls <= 0x1E) {
            row = 5;
            break;
        }
        if (cls < 0x0F)
            return 0;
        switch (cls) {
        case 0xCC:
            ship = &wof_m.ship_records[2];                       /* 0x02549C */
            break;
        case 0xF1: case 0xF3: case 0xF2: case 0xF6:
            ship = &wof_m.ship_records[3];                       /* 0x0254BA */
            break;
        case 0x10C: case 0x10E: case 0x10D: case 0x10F: case 0x110:
            ship = &wof_m.ship_records[1];                       /* 0x02547E */
            break;
        case 0xE5: case 0xE6: case 0xE4: case 0xE7:
            ship = &wof_m.ship_records[0];                       /* 0x025460 */
            break;
        case 0x20: case 0x1F: case 0x21: case 0x26: case 0x23:
        case 0x22: case 0x24: case 0x25: case 0x9F: case 0x27:
            ship = &wof_m.ship_records[4];                       /* carrier_record */
            return (int16_t)(ship->w0e - ship->w14 - wof_g.g_0253ae - wof_g.g_025396);
        default:
            return 0;
        }
        return (int16_t)(ship->w0e - ship->w14 - wof_g.g_0253ae);
    }
    return (int16_t)((int16_t)wof_image16(0x0257C2u + 2u * (uint32_t)row) - (int16_t)((rec >> 11) & 7u));
}

Under the oracle of chapter 5 the original's routine is held to that formula over 600 random records, with random ships and swell, and the port's to the original's for every record of five maps, the ships' decks at random heights.

What the loader builds¶

map_scan walks the record list twice and turns its records into the game's objects: the targets, the soldiers, the islands and the ships; a scan of its own, run first, takes the airfields' markers. The first walk looks at the drawn records only. It counts the barracks, the dug-outs and the pillboxes, the islands by their east beaches, and what the briefing will name. It fills the five ship records, each from the first drawn record of a slot that marks that ship: the span of the record list the ship covers, and fixed values for the rest; for an enemy ship also the block of aircraft parked on its deck, from a table by map number.

The tables are then sized by those counts, the soldiers five to each barracks and dug-out, and the second walk fills them: each target's place in the record list and its island, and the dug-outs' and the barracks' world x; each island's two beach records, in two short lists from which the drawing places the beaches; each island's span of dug-outs, and its two counts, the soldiers alive and the pillboxes standing. What the targets and the soldiers do with them is chapter 15's; the airfields' fighters are chapter 16's.

A hit rewrites the record list, and nothing else does. A bombed barracks' four records turn from slot 4 into slot 5, the burnt barracks, and a pillbox's four records into another of its states, each keeping its draw flag and its low bits. So the map a mission ends with is not the file's, and the burnt barracks is drawn, and smokes, from the records themselves. Chapter 3 told that a saved game carries them.

The port keeps every one of these tables at a fixed place with a fixed capacity, cleared where the original asks for cleared memory, and a test holds the capacities against all fifteen maps. The setup is compared at step S, chapter 6's dump after the setup, on each map loaded as the mission it belongs to, not laid over another map's file: every registered value and table equal, map_scan's among them.

What the port made of it¶

The port keeps the records as the original's sixteen-bit words, read with the same shifts and masks. Where the original holds a pointer into the map, the port holds the byte offset, which a saved state can carry. Beside it stands the decoder, against which the original's draws and the port's are held alike.

For the developer

The routines: map_load 0x012ADC, map_scan 0x012D5A, the airfields' scan 0x012C84, draw_world 0x013772, the record's extras 0x013B1C, draw_world_shape 0x015174, ground_height 0x015714, ship_at_offset 0x014A4E, islands_draw 0x0140E8, airfields_draw 0x013A18; in the tick, map_slot_at 0x0150C8, a record's slot and low bits under a world x, and on_water 0x01CB74.

The second walk of map_scan reads one record past the end of the list: its counter starts at the list's length in bytes and loses one twice a record, the second time in dbmi at 0x0131BE. The port's table, 3,576 words, is a few records longer than the longest map, m, with the record the second walk reads past the end among them. No map has more than four islands, and the drawing would read past the beaches' lists of four for a fifth.

A wreck's x taken from the address where the allocator put the record list, which the port carries as an input, is chapter 20's story. In the port: src/mission.c, src/world.c, src/tick.c, src/mission.def.

What comes next¶

The chapter in one sentence: a world is a strip of two-byte records, one for every eight pixels, which the game paints anew in every pass and from which the tick takes the height of the ground and what lies under an object. Chapter 14 turns to the player, who flies over this strip, takes off from the carrier and lands on it.
